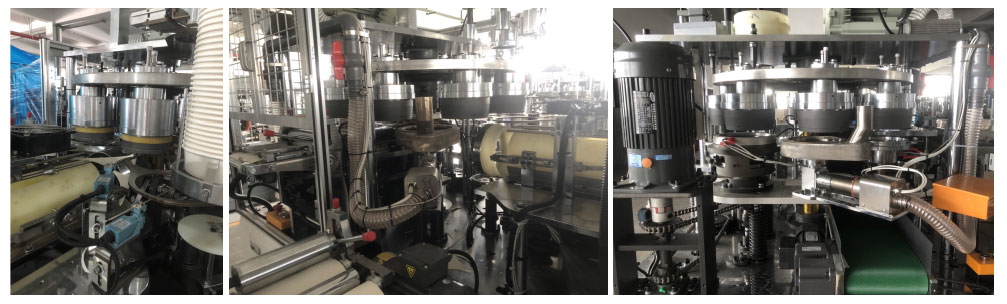

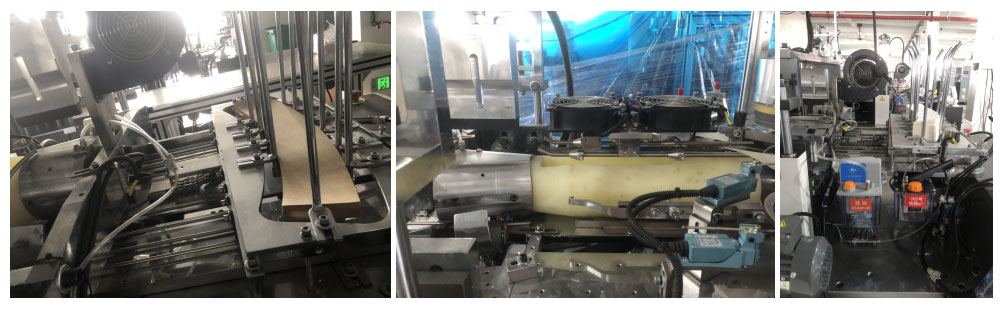

YB-WJ70 Fully automatic paper bowl forming machine, stable operation speed of 70-80PCS per minute. The machine uses ultrasonic waves to seal the bowl. Hot air heatingsystem for bottom sealing. This machine with high precision high hardness open CAMand gear structure, automatic lubrication.The machine adopts sensor monitoring and alarmPLC and touch screen intelligent system.Also with automatic counting and manipulatorcollection function.

Technical Parameters

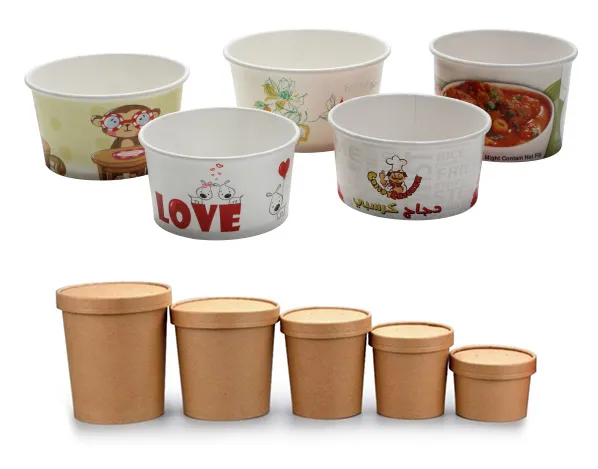

Product Sample

Paper Bowl Forming Process

• Ultrasonic: The wall sealing take ultrasonic sealing more fast and stable with good product.

• Sensors: Sensor detection throughout the program (sensors control all steps), reducing waste and failure , more reliable and stable.

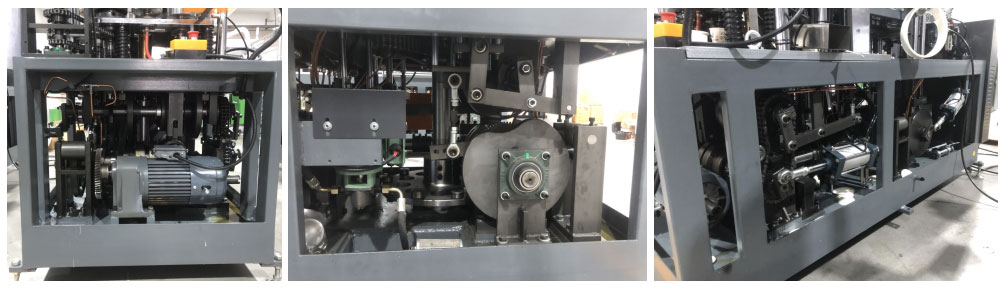

• Oil circuit system: Prolong the service life of parts, reduce friction losses, and improve machine efficiency.

• Heat dissipation function: Maintain the normal operating temperature of the equipment, extend the production service life, and improve the safety of use.

• Hot air system: The heating speed is fast, the constant temperature is more stable , and the scrap rate is greatly reduced to ensure the normal operation of the equipment.

• Low initial investment: Compared with high-speed multi-disc (multi-station) molding machines, single-disc machines have a simple structure and lower procurement costs, making them suitable for companies with limited budgets or start-up factories.

• Trial-production friendly: Suitable for new product prototyping or small-scale trial production, avoiding waste caused by mold coordination problems in multi-disc machines.

• Low failure rate: The mechanical structure is simple, the operation stability is high, and the downtime caused by multi-station synchronization problems is reduced.

• Reduce raw material waste: The moderate speed facilitates real-time quality inspection and reduces the defective rate that may be caused by high-speed production (such as uneven curling and weak gluing).

• Compact design: The single-disk machine is usually smaller than the multi-station model, which is suitable for scenes with limited factory space (such as small workshops and rental factories).

• Uniform heating: The heating system of the single-disc mold (such as bottom hot pressing) is easier to control the temperature, avoiding cup deformation or poor gluing caused by uneven heat distribution in multi-disc machines.

• Balanced pressure: The pressure adjustment of the cup body molding and bottom sealing is more precise, and the finished product has high consistency.

Maintenance of WJ200 Automatic Paper Bowl Forming Machine should be carried out in strict compliance with the maintenance guidance.

1. Every component should be cleaned up carefully.

2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.

3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the WJ200 Automatic Paper Bowl Forming Machine from the shipment date.

2. The warranty does not cover normally worn components.

3. We will not be responsible for any damage caused by misusing, improper handling, negligent maintenance, intentional injury or other damages.

Rapid Response & Efficient Repair

• 24/7 Customer Support

Provide multi-channel (phone, live chat, email, app) instant technical support to ensure customer issues are addressed immediately.

Offer multilingual services to meet the needs of global customers.

• Priority Response Mechanism

Classify priorities based on urgency (e.g., 2-hour response for equipment breakdowns, 24-hour response for non-critical issues).

Provide remote diagnostics via IoT technology for real-time monitoring and early detection of potential issues.

• Spare Parts Supply Chain Management

Establish regional spare parts centers to ensure fast replacement of commonly used components.

Offer replacement equipment or backup machines (for critical devices) to minimize downtime losses.
