Article Overview: Selecting the right packaging film machine is a critical decision for production teams. This comparison article provides a neutral, criteria-based evaluation of vertical and horizontal packaging film machines, focusing on technical fit, operating implications, and procurement considerations. Use the decision framework and specification comparison to match machine characteristics to your line requirements.
Why Compare Packaging Film Machine Types?
Packaging film machines are central to efficient product wrapping and sealing. The two predominant configurations — vertical and horizontal — serve different production contexts. For buyers evaluating options for their packaging line, understanding the trade-offs between these architectures is essential. The choice affects floor space utilization, changeover complexity, throughput, and downstream integration. This section outlines the core differences that matter to technical decision-makers.
Vertical machines typically feed film from above and form bags around a product column; horizontal machines convey products through a sealing station. Each approach imposes distinct constraints on product geometry, film tension control, and automation compatibility.
What Are the Key Differences Between Vertical and Horizontal Packaging Film Machines?
The fundamental mechanical layout drives most operational differences. Below we break down the key technical aspects.
- Film Path and Tension Control: Vertical machines rely on gravity-assisted film drop, which simplifies tension control for pliable films. Horizontal machines require more complex servo-driven belt systems to maintain consistent film tracking at higher speeds.
- Product Handling: Vertical form-fill-seal (VFFS) is ideal for free-flowing granular or small piece products. Horizontal form-fill-seal (HFFS) suits larger, pre-formed, or delicate items that cannot drop vertically.

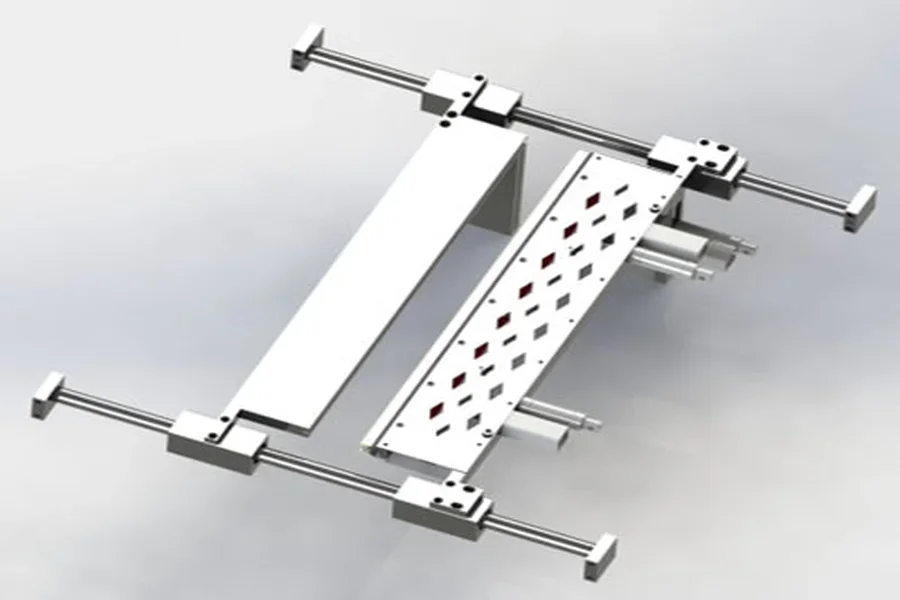

- Sealing Mechanism: Both use heat sealing, but horizontal machines often incorporate multiple sealing stations (e.g., four independent stations in some models) for higher throughput and better seal integrity on multi-lane operations.
These differences directly affect maintenance routines and spare parts inventory. For example, horizontal machines with multiple servo motors may demand more skilled technicians for alignment calibration.
Key Specification Comparison
| Criterion | Vertical Packaging Film Machine | Horizontal Packaging Film Machine | Buyer Note |
|---|---|---|---|
| Throughput (bags/min) | Varies by configuration | Varies by configuration | Assess against your production target; request specific throughput data from supplier based on your film and product dimensions. |
| Floor Space (footprint) | Generally more compact (vertical orientation) | Requires longer conveyor line (horizontal orientation) | Measure available floor area including material flow path. |
| Film Compatibility | Flexible films (PE, PP, laminates) | Flexible films (PE, PP, laminates) with anti-air bag function | Both handle common films; horizontal machine may better support multi-layer or pre-printed film registration. |
| Automation & Control | Single servo or mechanical drive | 4 independent motor controls, PLC-based | Horizontal four‑station systems offer finer control over each processing stage, beneficial for complex packaging formats. |
| Changeover Time | Depends on line setup | Depends on line setup | Evaluate tool‑less changeover options; request supplier data for your typical product mix. |
How Do Operating and Maintenance Costs Compare?
Beyond initial purchase price, total cost of ownership includes daily operation, maintenance complexity, and integration ease. Consider the following factors when comparing vertical and horizontal packaging film machines.
- Daily Operation: Vertical machines often have a simpler user interface and fewer adjustments required during a shift. Horizontal multi-station machines may require more frequent monitoring of seal temperature and film alignment across stations.
- Maintenance Complexity: Servo-driven horizontal systems involve more electronic components and wiring. Spare parts availability and technician training should be factored into the procurement budget.
- Integration with Upstream/Downstream Equipment: Horizontal conveyors typically integrate more naturally with existing filling and cartoning equipment. Vertical machines may need additional height clearance and infeed conveyors.
For a deeper look at supporting equipment, explore the packing machine category to see how different packaging solutions fit into your line.
Which Machine Fits Your Production Line?
The decision ultimately depends on your product portfolio, facility constraints, and growth plans. If you primarily package small, free-flowing items and have limited floor space, a vertical machine may be the more practical choice. Conversely, if you handle diverse product sizes, require high throughput with precise film registration, and can accommodate a longer inline layout, a horizontal machine with multiple stations offers greater flexibility.
We recommend conducting a line simulation or consulting with OEM engineers early in the procurement cycle. Request sample runs with your actual packaging film to validate seal quality at target speeds. The products page provides an overview of available configurations. Additionally, review the paper cups packaging and paper bowl application pages to see how these machines are deployed in real production environments.
FAQ
What is the typical lifespan of a packaging film machine?
With proper maintenance, a packaging film machine can operate for 10–15 years. Horizontal machines with more moving parts may require major overhauls around the 7–10 year mark. Always check manufacturer maintenance schedules and available support contracts.
Can vertical and horizontal machines be used for the same film types?
Yes, both can handle common flexible films such as polyethylene, polypropylene, and laminates. However, very thin or stretch-sensitive films may perform better on horizontal systems with servo-driven tension control. Validate film specifications with the equipment supplier.
How does the anti-air bag function work on horizontal machines?
Anti-air bag function refers to the ability to evacuate excess air from the package before sealing. This is typically achieved by a mechanical compression plate or vacuum assist, which is easier to implement on horizontal configurations. For products that require compact packaging, this feature is a key differentiator.
What automation level should a mid-size production line target?
For production lines running multiple product SKUs, PLC-controlled horizontal machines with independent servo stations offer the necessary adaptability. For dedicated high-volume lines with one product type, a simpler vertical machine may suffice. The high speed paper cup machine page illustrates automation concepts applicable to packaging lines as well.
Conclusion
Comparing vertical and horizontal packaging film machines requires a structured evaluation of throughput, space, film handling, and integration needs. Neither architecture is universally superior; the best choice aligns with your specific product characteristics and operational priorities. Use the specification comparison and operational implications outlined in this article to guide your procurement team toward a decision that balances performance, maintainability, and scalability. For further assistance, visit the Home page to explore the full range of packaging solutions available.
