YB-S90 medium speed paper cup forming machine is improved on the existing S100,specially designed for produce small size cups which below 9Oz,stable speed is100/min,using sensor monitor in alarm and PLC system, transmission system automatic lubrication system, cup collector automatic counting function.Machine can be used for single/double PE paper.

Technical Parameters

Paper Cups Forming Process

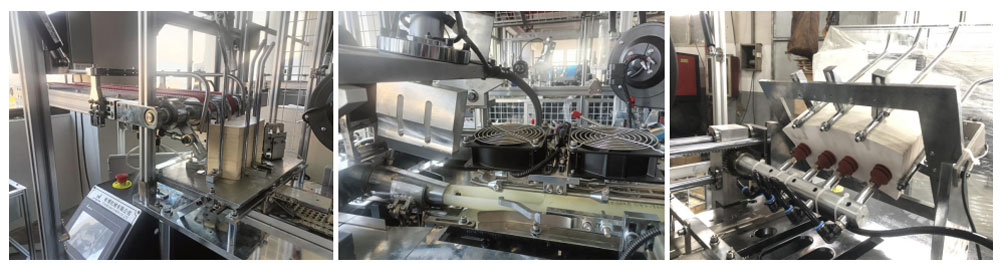

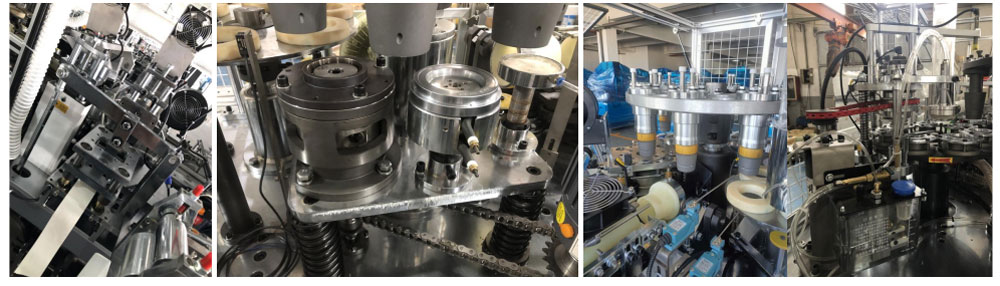

• Ultrasonic: The wall sealing take ultrasonic sealing more fast and stable with good product.

• Sensors: Sensor detection throughout the program (sensors control all steps), reducing waste and failure , more reliable and stable.

• Oil circuit system: Prolong the service life of parts, reduce friction losses, and improve machine efficiency.

• Heat dissipation function: Maintain the normal operating temperature of the equipment, extend the production service life, and improve the safety of use.

• Hot air system: The heating speed is fast, the constant temperature is more stable , and the scrap rate is greatly reduced to ensure the normal operation of the equipment.

• Low maintenance costs: The mechanical structure is simplified, with fewer parts and components, and the maintenance and replacement costs are low (such as molds and transmission parts). Energy saving: The operating power of a single-disc machine is lower than that of a multi-disc high-speed machine, and long-term use can reduce electricity expenses.

• Trial-production friendly: Suitable for new product prototyping or small-scale trial production, avoiding waste caused by mold coordination problems in multi-disc machines.

• Low failure rate: The mechanical structure is simple, the operation stability is high, and the downtime caused by multi-station synchronization problems is reduced.

• Reduce raw material waste: The moderate speed facilitates real-time quality inspection and reduces the defective rate that may be caused by high-speed production (such as uneven curling and weak gluing).

• Balanced pressure: The pressure adjustment of the cup body molding and bottom sealing is more precise, and the finished product has high consistency.

• Typical application scenarios Small and medium-sized paper cup factories, food packaging companies. Customized production that requires frequent changes in cup types (such as promotional cups for events, personalized printing).

• Emerging markets that are cost-sensitive and have moderate capacity requirements (such as Southeast Asia and Africa).

Maintenance of S90 Medium Speed Paper Cup Forming Machine should be carried out in strict compliance with the maintenance guidance.

1. Every component should be cleaned up carefully.

2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.

3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the S90 Medium Speed Paper Cup Forming Machine from the shipment date.

2. The warranty does not cover normally worn components.

3. We will not be responsible for any damage caused by misusing, improper handling, negligent maintenance, intentional injury or other damages.

Rapid Response & Efficient Repair

• 24/7 Customer Support

Provide multi-channel (phone, live chat, email, app) instant technical support to ensure customer issues are addressed immediately.

Offer multilingual services to meet the needs of global customers.

• Priority Response Mechanism

Classify priorities based on urgency (e.g., 2-hour response for equipment breakdowns, 24-hour response for non-critical issues).

Provide remote diagnostics via IoT technology for real-time monitoring and early detection of potential issues.

• Spare Parts Supply Chain Management

Establish regional spare parts centers to ensure fast replacement of commonly used components.

Offer replacement equipment or backup machines (for critical devices) to minimize downtime losses.
