YB-S100 automatic high speed paper cup forming machine,the paper feeding process is smooth, to the maximum speed of 130 per minute,stable running speed of 100-110 according to the paper material.

Using rotary paper feed and hook cup,sensor monitoring alarm and PLC system. Has an automatic counting collector.

Can make single PE and double PE coated paper.For cold and hot drinks.

Technical Parameters

Paper Cups Forming Process

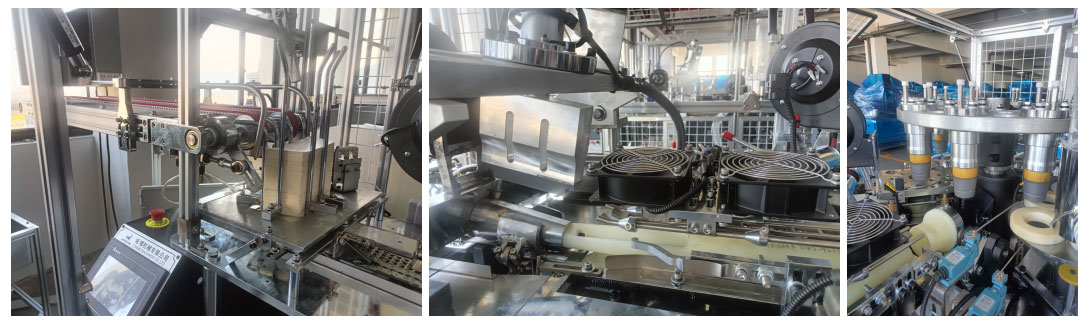

• Ultrasonic: The wall sealing take ultrasonic sealing more fast and stable with good product.

• Sensors: Sensor detection throughout the program (sensors control all steps), reducing waste and failure , more reliable and stable.

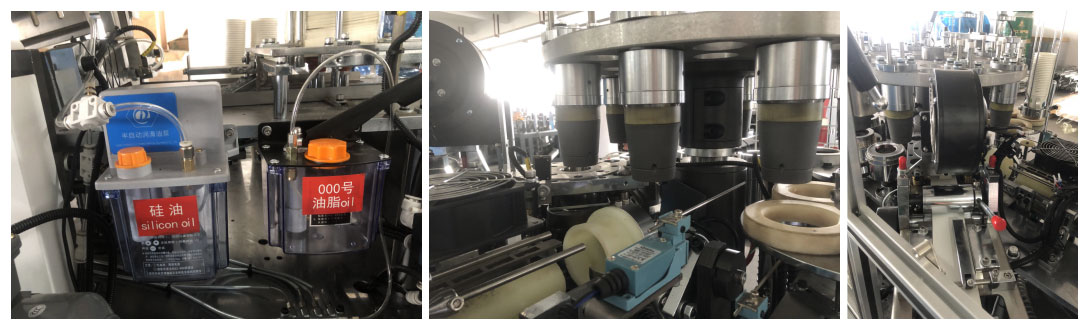

• Oil circuit system: Prolong the service life of parts, reduce friction losses, and improve machine efficiency.

• Heat dissipation function: Maintain the normal operating temperature of the equipment, extend the production service life, and improve the safety of use.

• Hot air system: The heating speed is fast, the constant temperature is more stable , and the scrap rate is greatly reduced to ensure the normal operation of the equipment.

• Automatic kick scrap: When the machine stop,the unfinished paper cup will kick out directly.

• Low initial investment: Compared with high-speed multi-disc (multi-station) molding machines, single-disc machines have a simple structure and lower procurement costs, making them suitable for companies with limited budgets or start-up factories.

• Quick mold change: Single-disc machines are usually equipped with a single mold, which makes it faster to switch cup types (such as different sizes and shapes), and are suitable for small batches and multiple varieties of orders.

• Low labor demand: The operation interface is simple, the training cycle is short, and 1~2 people can complete production monitoring.

• Reasonable speed: The medium-speed design balances efficiency and quality, and is suitable for small and medium-sized customers with daily production requirements of 10,000~30,000 pieces.

• Compact design: The single-disk machine is usually smaller than the multi-station model, which is suitable for scenes with limited factory space (such as small workshops and rental factories).

• Uniform heating: The heating system of the single-disc mold (such as bottom hot pressing) is easier to control the temperature, avoiding cup deformation or poor gluing caused by uneven heat distribution in multi-disc machines.

• Capacity limit: not suitable for ultra-large orders (such as tens of thousands per hour). Automation level: usually requires manual assistance in loading/collecting cups, while high-speed models may integrate fully automated production lines.

Maintenance of S100 Medium Speed Paper Cup Forming Machine should be carried out in strict compliance with the maintenance guidance.

1. Every component should be cleaned up carefully.

2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.

3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the S100 Medium Speed Paper Cup Forming Machine from the shipment date.

2. The warranty does not cover normally worn components.

3. We will not be responsible for any damage caused by misusing, improper handling, negligent maintenance, intentional injury or other damages.

Rapid Response & Efficient Repair

• 24/7 Customer Support

Provide multi-channel (phone, live chat, email, app) instant technical support to ensure customer issues are addressed immediately.

Offer multilingual services to meet the needs of global customers.

• Priority Response Mechanism

Classify priorities based on urgency (e.g., 2-hour response for equipment breakdowns, 24-hour response for non-critical issues).

Provide remote diagnostics via IoT technology for real-time monitoring and early detection of potential issues.

• Spare Parts Supply Chain Management

Establish regional spare parts centers to ensure fast replacement of commonly used components.

Offer replacement equipment or backup machines (for critical devices) to minimize downtime losses.
